“Werkstatt Frankfurt e.V.”, the operator of the “Licht- und Luftbad Niederrad”, wanted to revitalize this public area of greenery. The various measures included creating a snack bar in the middle.
The “Licht- und Luftbad” is a rest-&-relaxation area located on a peninsula on the southern bank of the River Main in Frankfurt’s Niederrad district. As a scenic park it has particular potential, a fact that was for long neglected. The peninsula is situated in a flood zone (with a record high water mark of 1.50 meters over a period of 50 years). The location and the growing problem of flooding as a result of climate change were the basis of the function of the redevelopment and the shape it took.More

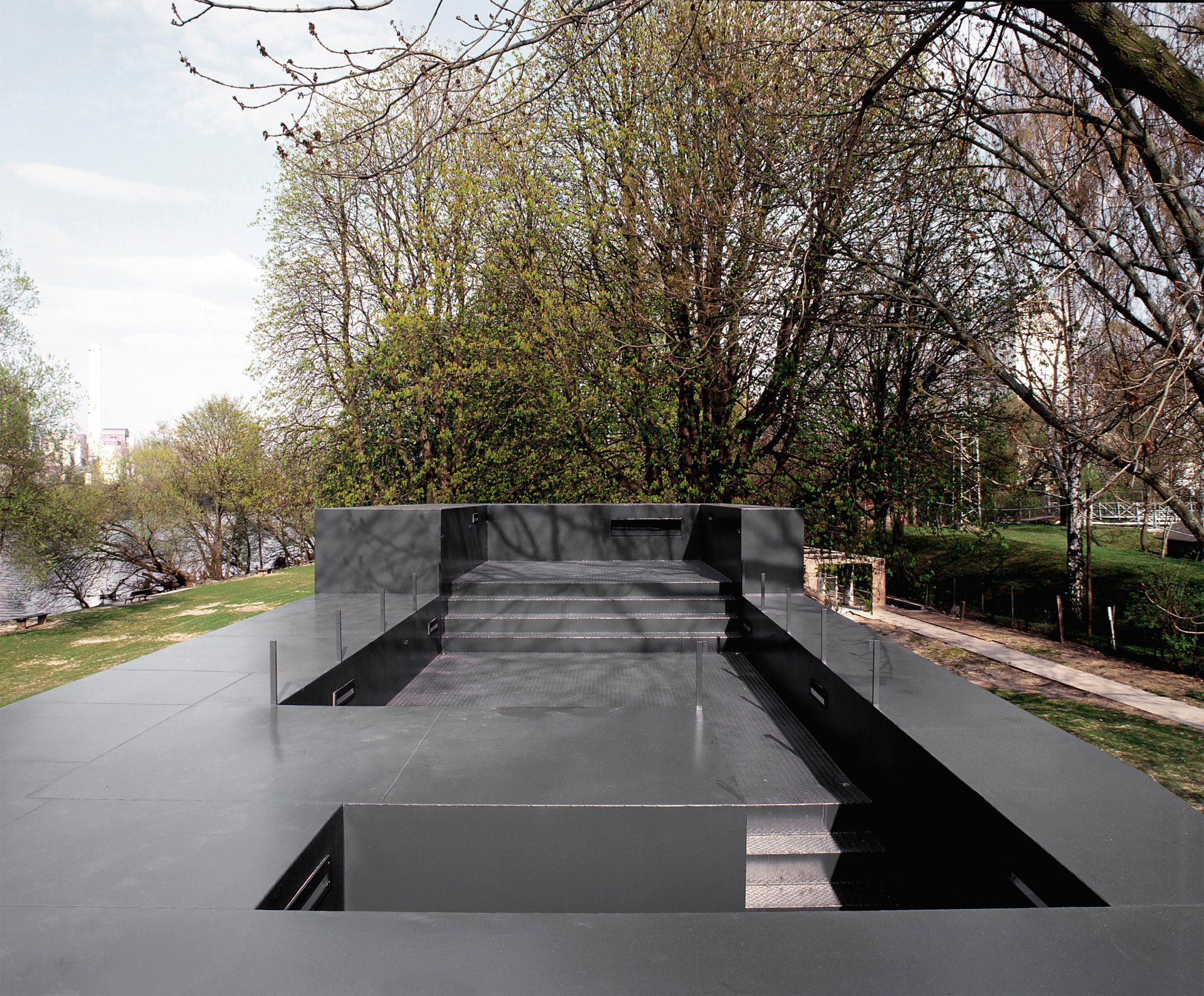

The concept centers around a snack bar construed as a “floating structure”. The shape of the steel structure was developed with reference to everyday “working pontoons” and realized as a straightforward, functional float-like building in close collaboration with a shipbuilding company. Particular aspects needing consideration were, on the one hand, the load-bearing behavior when it rises, is floating, and falls again, and on the other a balanced load distribution when afloat as the result of a corresponding footprint design and the possibility to subsequently flood individual areas of the floating structure, which takes the form of a hollow section inside the overall volume. The solutions also took into account the particular way the floating structure is secured, namely on dolphins.
The transformation to the form of a conventional apparent utility craft or pontoon that was required led to a slight exaggeration of the shape. The seemingly beached pontoon initially strikes one as paradoxical – but at second glance highlights the fact that the island today is in a flood zone. Furthermore, it symbolizes the process of being stranded, of floating up, and potentially floating away.
Aerial view Licht- und Luftbad
3d model exterior
3d model interior
Werkstatt Frankfurt e.V.
José Ortells (project architect), Georg Kratzenstein, Erhan Patat
Frankfurt am Main
Gross floor area
Deutscher Architekturpreis 2003 - Recognition
The architectural expression of the buildings we have designed varies immensely. Nonetheless, they are based on an explicit architectural stance and share the same design approach.
As we see it, an architect should pay close attention to the actual conditions and allow them to develop fully. The logic of what is real imposes limits on the architect’s ideas, and any subjective thrust to the architecture is reduced to a minimum. After all, finding is more important than inventing. At the same time, it is important to transcend the existing situation intellectually and this ultimately transform it into an architectural design. It follows that our fundamental concern is to bear with the ambivalence between the actual parameters and what they inevitably translate into and come up with something beneficial in the process. To do this you must be capable of seeing precisely what already exists, be fascinated by it, but also let it inspire you to go beyond it if necessary.
This is why our concept entails us working with perceptions, images and associations, combining them with the practical parameters of the respective brief.
Association object: Jigsaw in case
Sheath of the saw case
We begin each design process by researching and thoroughly analyzing the specific features of a place and the brief. This involves exploring historical, cultural and symbolic layers and teasing out their vibrancy. Based on these insights, we collect all the possible associations that occur to us. Typically, these thoughts are closely bound up with the particular features of the place, existing architecture and brief. They emerge from a precise observation of everyday things, their arrangement and significance. These features might be furnished interiors or the items that generally shape a space, but can equally be existing, urban situations, the historical layers of a building or the history of a place. We then translate these authentic spatial structures and constellations that have developed naturally into model studies with a view to revitalizing the space at our disposal as perceptual space, space for reflection and space for social interaction.
In our design process the analysis of the existing circumstances merges with the transformation of existing situations or buildings. Specifically, we rely on intellectual associations and the images derived from them. What at first sight might appear to be a kind of ready-made becomes the basis for a new reality, which neither ignores its position in a given context nor the conditions under which it evolved. This approach also emphatically draws on past building typologies and techniques.
As such, our approach to architecture is based on our essentially seeing everything we do as a transformation or a conversion of existing situations. This is why the buildings we design respond sensitively to their immediate surroundings and urban context. At the same time, they also develop a sculptural impact. We resolve the seeming contradiction this produces by applying specially developed methods that are established practice in the world of contemporary art.
For the project Reading Room at the Museum für Moderne Kunst Frankfurt an abstract version of the study of an “intellectual compulsive hoarder” was created using multiple stacks of books.
Apart from realizing individual projects we also continually develop spatial studies that are not commissioned and in which spaces are played through on varying scales and explored in an exemplary manner.
Drawing on an idea from concept art we employ calculated experimentation with levels of perception and chains of association to kick off the design process; a method that produces solutions which might seem natural but are also surprising.
A filled box as starting point for a steel sculpture
Front view of the steel sculpture. The full box is easily recognizable.
From behind, the steel sculpture reveals a totally different, abstract form.
Things suffused with human experiences, spatial and urban constellations are transformed graphically, sculpturally and architecturally.
Whether designing a new building or converting an existing one we place the focus firmly on perception – particularly regarding the ambivalence of mass and space, concreteness and abstraction. Existing buildings and constellations are infused with diverse social experiences that trigger specific associations. By identifying and analyzing their complex significance vibrant uses and means of social interaction in real space emerge. This creates a new view of places, buildings and things that in turn stimulates new ways of combining various images, atmospheres and uses.
We also engage in our own spatial studies – and have elaborated them over the years. They focus on examining and exploring examples of urban and urban planning concepts, spatial structures, building typology structures as well as artistic issues.
Spatial studies and projects
Over the years we have developed the following spatial concepts drawing on the methods described earlier. Through a series of sculptures, model studies and drawings we have examined how spatial concepts can be developed and realized not only considering the relationship between line, surface and space, but also between drawing and sculpture, representationalism and abstraction.
The steel sculptures by Florian Schlüter are conceived as walk-through drawings transposed into the realm of the three-dimensional. They revolve around the ambivalence between concepts such as mass and space, concreteness and abstraction and are aimed at exploring the authenticity of the everyday. These inconsistencies become integrated into later architecture projects as fundamental aspects of them.
Steel sculpture "Room 01", sketch
Steel sculpture "Room 01", front view
Steel sculpture "Room 01", side view
Studies of urban space
In various studies of urban space, Claudia Meixner employs drawings, paintings and models to penetrate the relationship between mass and space, space as a complement of mass and space, mass and intervening space. Her starting points are both abstract but also specific urban constellations whose given sensual and material design become the point of departure for a transformation that can culminate in a new take on reality.
Study of urban space 01
Study of urban space 02
Study of urban space 03
Moreover, a series of model studies and installations are used to realize potential buildings. Complex spatial concepts are developed through addressing issues on the relationship between shell and core, the importance and function of interstices and elements in space.
Here furniture or furnishing elements in interiors are taken as the starting point. In this model study the constellations that have become usual in everyday life correspond with individual walk-through spaces in a large surrounding space. It is possible to experience the elements and their relationship to the overall space as well as the relationship between the intermediate space and the space as a whole.
Various objects and arbitrarily stacked boxes as a starting point
Model of accumulation/stacking
Model intermediate space
In a first model study the starting point was the seemingly chance accumulation and stacking of things. The individual elements in the model represent interior spaces that can be walked through and form intermediate space.
The point of departure for another model study is the shaping and selective filling of intermediate spaces through a stacking and layering of various objects in the space. The relationship between positive and negative is reversed, while that of the volume and mass is redefined. The intermediate space becomes walk-through mass.
In addition to the afore-mentioned conceptual parameters, when realizing projects the practical parameters of relevance to the architecture also come into play and influence the substantive concept.
A whole raft of structural means contribute to the success of a sculptural edifice that expresses tranquility and agitation, gravity and lightness, stability and instability, depending on the overall concept.
In designing a pavilion for Expo 2000 the starting point was the geometry of a “simple house” with a saddle roof, a single interior space and several “items of furniture”. By enlarging it ten-fold the things morph into archetypal symbols. Perception per se is addressed and a new perception of the architectural space and the objects in it is created. Depending on the viewer’s angle the house, interior space and garden appear either symbolic, concrete or abstract.
Rendering of the Expo 2000 pavilion
The concept for transforming this residential building developed from the necessity to extend and structurally improve an archetypal house. A new sheath was created that encompasses the entire house. Diverse spatial constellations were produced within the cubic sheath architecture that experiment with the relationship between interior and exterior spaces and the intermediate spaces created as a result.
View from the new living room of the old outer facade
As part of a project for Artemide, the shapes of several of the manufacturer’s luminaires were regarded as ready-mades, reduced to their essential components, merged with one another and cut out of a compact mass as a negative form. Through the play of light and shadow the resulting polyvalent volume produces a special spatial atmosphere and triggers diverse associations.
Section of the 3d-printed form
The special nature of the place and the reduction process is made evident in the partial dismantling and conversion of the Dornbusch Church. A new wall marked with indents and molds of the old church and elements that had been removed were used to form a sculpted structure. What is absent remains present in these molds. The perception of area and space is activated and the recollection of its earlier state reinforced.
The partly dismantled Dornbusch Church with relief wall and new plaza
In architecture as we understand it everything is basically transformation. We see our task as controlling the ambivalences that emerge during a transformation of an existing structure. This is not only easy on physical resources, but also revitalizes sensual, intellectual and ultimately cultural resources.
